Marine-Grade HPL Panels
Marine-grade panels with excellent waterproof and mildew-proof properties
Quick Specifications
Product Overview

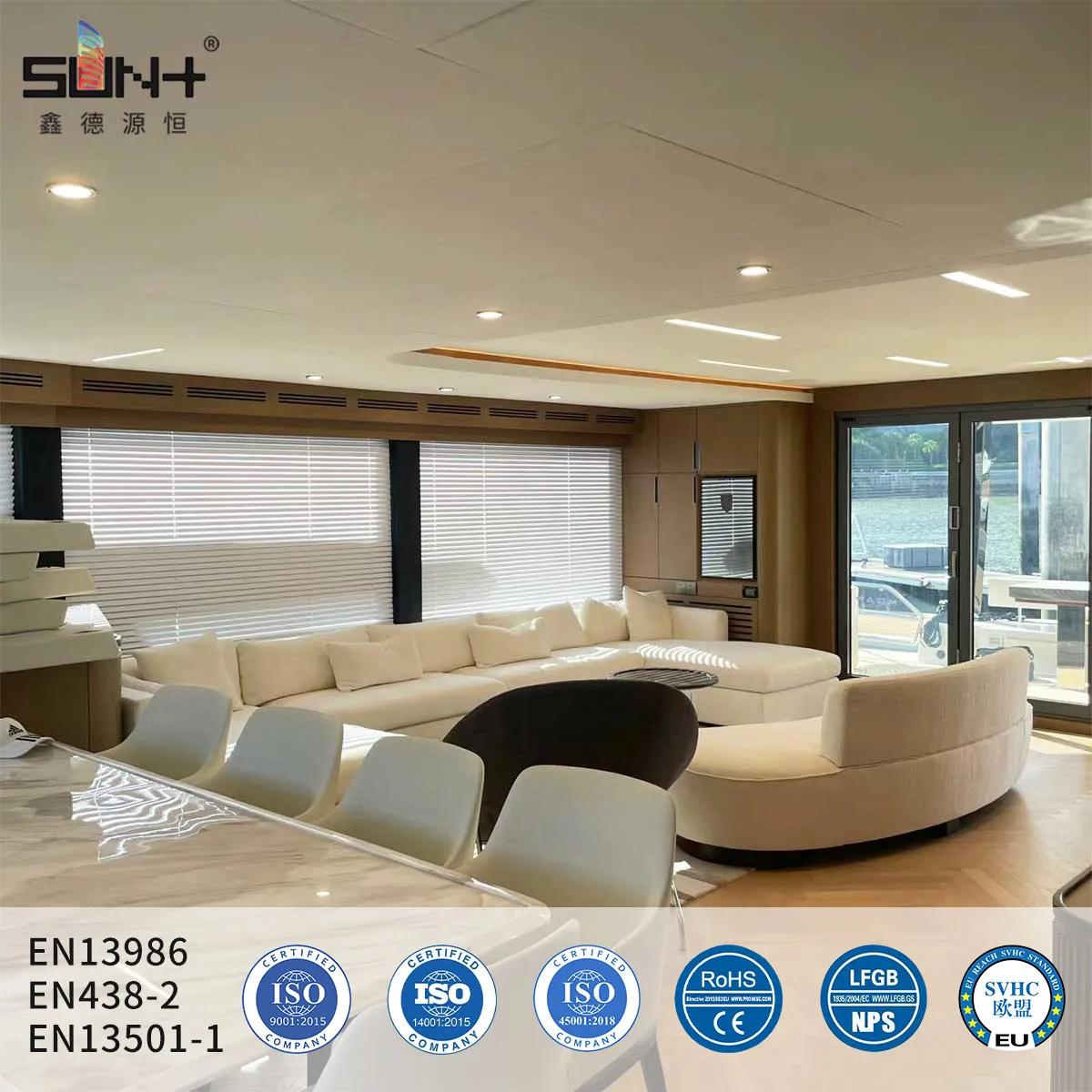

Marine-Grade HPL Panels is a specialized marine-grade high-pressure laminate engineered to withstand the extreme conditions of maritime environments. Manufactured using marine-certified phenolic resin systems and specially treated kraft paper layers, the production process involves high-pressure lamination (100-120 kg/cm²) at controlled temperatures (150-160°C) to create a completely waterproof, dimensionally stable panel. The surface incorporates advanced anti-fungal agents and UV-resistant coatings to prevent mildew growth and color fading from constant sun and salt spray exposure. With 100% waterproof core construction (water absorption <0.1% per 24 hours), this product maintains structural integrity even in high-humidity marine environments. Salt spray resistance exceeds 1000 hours (ASTM B117 test), ensuring long-term durability in saltwater conditions. The panel meets stringent International Maritime Organization (IMO) fire safety standards including IMO MED 2014/90/EU and SOLAS regulations for ship interior materials. Fire rating: Class B (GB 8624) with low smoke emission and non-toxic combustion products. Available in thicknesses from 0.6mm to 1.5mm for decorative laminates, and 6mm to 25mm for structural compact panels. Ideal for cruise ship cabins, yacht interiors, ferry passenger areas, offshore platform accommodations, and any marine vessel requiring durable, fire-safe, moisture-resistant interior surfaces. Meets international marine standards including IMO Resolution MSC.61(67), EN 45545-2 for railway vehicles, and GB/T 17657 for marine applications.
Technical Specifications
Physical Properties
| Thickness Range | 0.6mm - 1.5mm (laminate), 6mm - 25mm (compact) |
| Water Absorption | <0.1% (24 hours) |
| Density | ≥1.35 g/cm³ |
| Salt Spray Resistance | >1000 hours (ASTM B117) |
Marine Certifications
| IMO Certification | IMO MED 2014/90/EU |
| Fire Rating | Class B (GB 8624), SOLAS compliant |
| Marine Standards | IMO Resolution MSC.61(67) |
| Smoke Toxicity | Low smoke, non-toxic |
Environmental Resistance
| UV Resistance | Excellent (no fading) |
| Mildew Resistance | Anti-fungal treated |
| Temperature Range | -20°C to +80°C |
Key Benefits
Marine Fire Rated
IMO FTPC Part 2 & 5 compliant
Impact Resistant
Withstands marine environment vibration
Moisture Proof
Resists high humidity and salt spray
Low Smoke Toxicity
Safe for enclosed vessel spaces
Easy Maintenance
Cleans easily with marine-grade cleaners
Corrosion Resistant
Withstands saltwater environment
Self-Extinguishing
Stops burning when flame source removed
UV Stable
Resists fading from sunlight exposure
